Physical Comp round 2

September 14, 2005

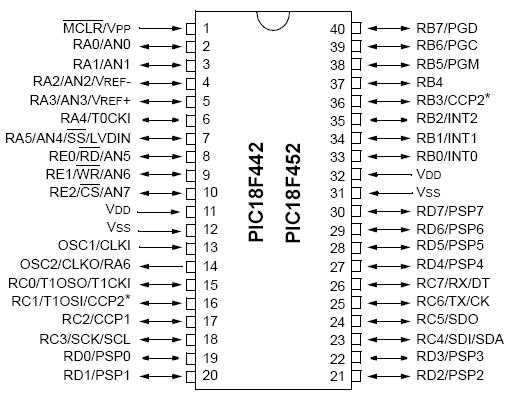

pic18f452 pinout

Above, you see our tiny-or not- little cutie chippy’s diagram that is going to be around for the rest of my ITP period and more. Here is the datasheet link (5mb) from MicroChip site. Basically it has 40 pins with 5 ports and one of them are both analog and digital if I am not wrong. It has 32k memory in other words can do 16384 cycles. I am going to ask this on physical comp wiki.
